Lifting Module

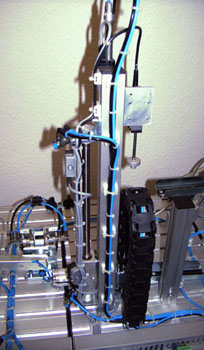

Distribution Station Feed Magazine Module Transfer Module Testing Station Detection Module Lifting Module Measuring Module Slide Module Processing Station Rotary Indexing Table Module Drilling Module Drilled Hole Checking Module back to index		The Lifting Module elevates the work piece from the material Detection Module to the Measuring Module. A lifting cylinder and an ejecting cylinder are used as actuators. The end position sensing is effected via magnetic or inductive proximity sensors.

Lifting Module	Address	Function
Outputs	E0.3	jack_down
	E0.4	jack_up
	E0.5	pusher_retracted
Inputs	A0.0	lower_jack
	A0.1	lift_jack
	A0.2	extend_pusher

Interface description with FBDK
