Feed Magazine Module

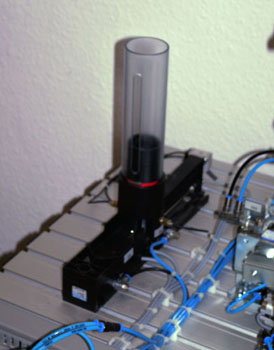

Distribution Station Feed Magazine Module Transfer Module Testing Station Detection Module Lifting Module Measuring Module Slide Module Processing Station Rotary Indexing Table Module Drilling Module Drilled Hole Checking Module back to index		The Feed Magazine Module separates work pieces from the magazine. A double acting cylinder pushes out the bottom work piece from the gravity feed magazine. End position sensing is effected by means of sensors. The filling level of the magazine is monitored. The magazine might be fed with work pieces in any order.

Feed Magazine Module	Address	Function
Outputs	E0.0	pusher_retracted
	E0.1	pusher_extended
	E0.6	magazine_empty
Input	A0.0	extend_pusher

Interface description with FBDK
